PRODUCT OVERVIEW

Overview

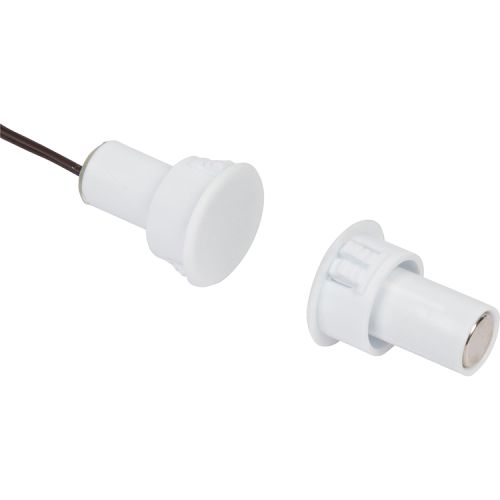

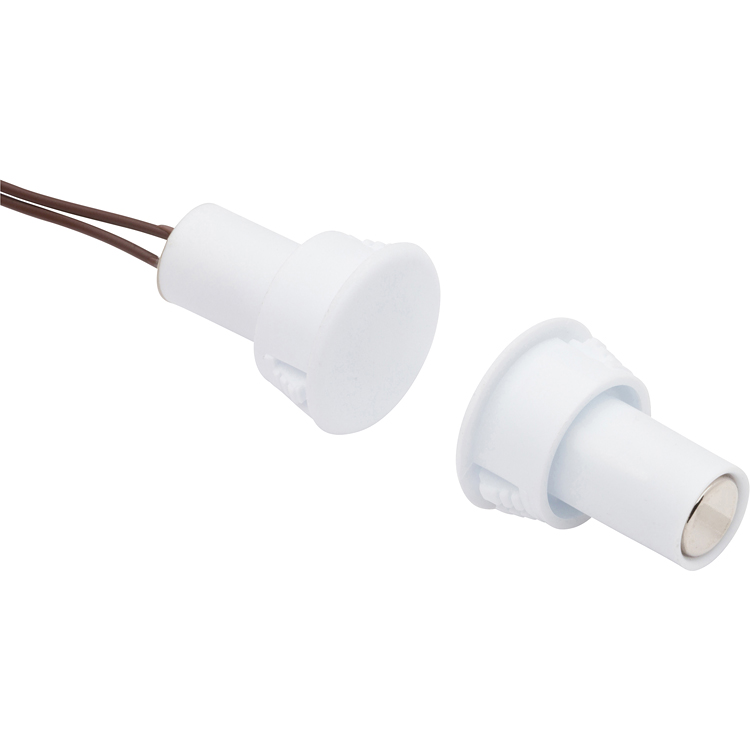

Nascom’s N78C Series is a 3/4” recessed wide gap door contact designed for residential, commercial and industrial steel and wood door applications.

The N78C is the installer’s choice of contact configuration because the contact set is designed to cut installation times and helps to prevent false alarms caused by shifting or warping doors.

The N78C Series is designed for installation in every type of hinged door including wood doors.

Features
SNAP FIT ON STEEL - NO GLUE REQUIRED
ENCAPSULATED HERMETICALLY SEALED CONTACTS
12” 22AWG WIRE LEADS
POLYPROPYLENE HOUSINGS
WIDE GAP - N35 NdFeB RARE EARTH MAGNET
LISTED TO UL634 STANDARD

General Information
Product Series
N78C
Application / Usage
Product Model
N78CW/ST
Country of Origin
Mexico
Product Type
3/4"
Technical Information
Color
WHITE
Operate Gap (in inches)
1.00 to 2.00
Contact Rating Switching Voltage
200 VDC
Contact Rating Switching Current
0.5 Amps
Contact Rating Carry Voltage
10vA
Contact Rating Carry Current
1.5 Amps
Static Contact Resistance
150 mOhms

PRODUCT CONFIGURATION OPTIONS

Configuration
Available Options
COLOR
WHITE
BROWN
GRAY
TAN
BLACK

Configuration
Available Options
PRODUCT TYPE
SWITCH/MAGNET SET
SWITCH ONLY
MAGNET ONLY

Configuration
Available Options
CIRCUIT
CLOSED LOOP
DUAL CLOSED LOOP
OPEN LOOP
CLOSED AND OPEN LOOP
SPDT
DPDT
HIGH SECURITY CLOSED LOOP
HIGH SECURITY OPEN LOOP
NONE

Configuration
Available Options
TERMINATION
UL1061 | 22AWG | 7/30
2-CONDUCTOR PVC JACKETED NEC TYPE CL2 AND CM
4-CONDUCTOR PVC JACKETED NEC TYPE CL2 AND CM
NONE

Configuration
Available Options
LEAD LENGTH
12 INCHES
24 INCHES
36 INCHES
18 INCHES
72 INCHES
120 INCHES
300 INCHES
NONE
180 INCHES

Configuration
Available Options
RESISTOR VALUE
NONE
1K IN SERIES
1K IN SERIES AND PARALLEL
2K IN SERIES
3.3K IN SERIES
5.6K IN SERIES AND PARALLEL
10K IN SERIES
33K IN SERIES
47K IN SERIES

Configuration
Available Options
RESISTOR TOLERANCE
NONE
5%
1%

Configuration
Available Options
RESISTOR POWER
NONE
1/8
1/4

Configuration
Available Options
CONDUCTOR COLOR
BROWN
WHITE
BROWN/VIOLET
RED
BROWN/WHITE
BLACK/WHITE
BROWN/RED/WHITE
BLUE
NONE

Configuration
Available Options
INDENTIFICATION
NONE
RED DOT
BLUE DOT
RED AND BLUE DOT
FLAG

Configuration
Available Options
SUFFIX
NONE
SPACER

NEED TECHNICAL ASSISTANCE?

Our support team is here to help you resolve technical issues, answer your questions, and ensure a seamless experience.

CONTACT SUPPORT

FREQUENTLY ASKED QUESTIONS

Explore our comprehensive range of high-performance security contacts.

Aluminum Industrial Contact Example: N505AUTMC/STSD072
N = Nascom part number
505A = 505A series aluminum industrial contact
U= Universal Mount
TM = Track Mount C = Commercial 3 inch rail size
/ST = Switch and Magnet set
SD = Single Pole Double Throw (Form C) contact.
072 = Custom 72 inch Armor Flex lead length
3/8 inch Recessed Switch Example: N1175TW/ST
N = Nascom part number
1175 = 1175 series Stubby 3/8” Press fit recessed contact
T = Screw Terminal Contact
W = White Color
/ST = Switch and Magnet Set
Other part number designations:
/SW = Switch only
/M = Magnet only

BRACKET SELECTION GUIDE:


Guide to brackets and contacts they will accept.
AUTM/BRKTKIT: For rail mounting the N505AU series to a standard residential overhead door with 2-1/4 depth track. See the complete set. N505AUTM/ST.
AUTMC/BRKTKIT: For rail mounting the N505AU series to a commercial overhead door with 3" depth track. See the complete set. N505AUTMC/ST
BRACKET S-9: Will accept surface mount contacts in the INDUSTRIAL COMMERCIAL products category except the N505AS and N400T series.
BRACKET EA50: Will accept surface mount contacts in the INDUSTRIAL COMMERCIAL products category except the N505AS and N400T series.
BRACKET 1913 .... Will accept surface mount contacts in the INDUSTRIAL COMMERCIAL products category except the N505AS and N400T series.
BRACKET 505S/A ... Designed to fit the N505AS series only. N505ASBRACKETKIT ... BRACKET 505S/A with mounting screws, nuts and washers.
BRACKET GATE and BRACKET GATE SPAC for mounting the N505A/STMPA to a chain link fence. See N505A/STMPAG
BRACKET SECLOOP. Replacement Bracket for the N505AS/STHSLP series.
The following are the available Bracket kits that include screws, washers and nuts.
BRACKETEA50KIT, BRACKET #EA50 WITH SCREWS, NUTS AND WASHERS Unit Price: $4.95, MOQ = 1.
BRACKET1913KIT, BRACKET #1913 WITH SCREWS, NUTS AND WASHERS, Unit Price: $3.95, MOQ = 1.
AUTM/BRKTKIT, TRACK MOUNT BRACKET KIT WITH SCREWS, Unit Price: $8.00, MOQ = 1.
AUTMC/BRKTKIT, COMMERCIAL TRACK MOUNT BRKT KIT W/ SCREWS, Unit Price: $13.00, MOQ = 1.

These are contact arrangements that can be found on switches and relays.
Form A: is a single, normally open contact that closes upon actuation when the magnet actuator is in proximity of the switch.
Form B: is the same as A except in reverse. A form B is normally closed contact that opens upon actuation when the magnet actuator is in proximity of the switch.
Form C: is a form A contact connected to a form B contact. The form C contact has 3 wire leads, NO (normally open), NC (normally closed) and C (common). Upon actuation when the magnet actuator is in proximity of the switch, the NO (normally open) contact closes (continuity from NO-C) and the NC contact opens (no continuity from NC-C).
It is more common to see the following designations:
Form A and B can also be referred to as Single Pole- Single Throw Contacts:
SPST-NO (Closed Loop) = Form A
SPST-NC (Open Loop) = Form B
Form C can be referred to as Single Pole Double Throw:
SPDT = Form C

We can add lead length to two, three, four and 6 wire switches, zip cord, jacketed cable and armored flex. Just let us know what length you require for your application.

Nascom uses Neodymium magnets in most switch models and we are often asked “ What is Neodymium ? “Neodymium magnets are a member of the rare earth magnet family. They are referred to as Rare Earth because neodymium is a member of the rare earth elements on the periodic table. Neodymium magnets are the strongest of the rare earth magnets and are among the strongest magnets manufactured in the world.
